高速全自动粘钉一体机

高速全自动粘钉一体机

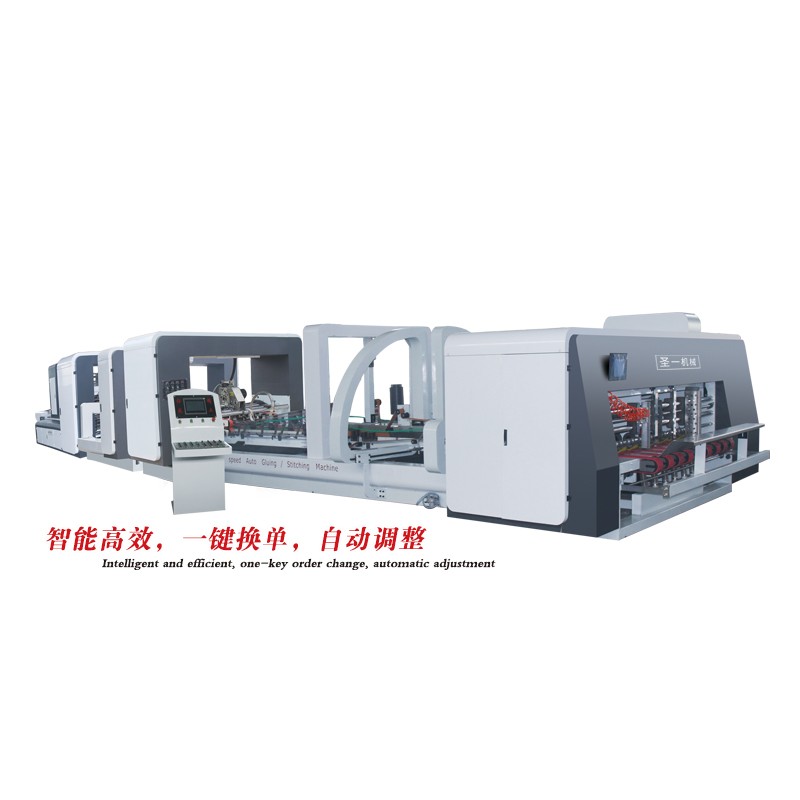

High speed Fully automatic adhesive nail machine

功能与特点：

◆本机蕞大特色是全电脑操控、操作容易、品质稳定、速度达到经济效益，大大节省人力。

◆本钉箱机为糊钉一体机，可糊箱，可钉箱，也可先糊后钉一次完成。3-5 分钟内可完成换单设定，即可大量生产( 带订单记忆功能)。

◆糊箱钉箱实现一键转换功能。

◆适合三层、五层、单片纸板.A.B.C 和AB 楞的纸板钉合。压线压力电动调整。

◆带各组压线功能，成型效果更好。

◆钉距范围：蕞小钉距为40mm，蕞大钉距范围为500mm。

◆钉头蕞大钉速：1500 钉/ 分钟

◆速度以三只钉为例蕞高速度达到每分钟140 片

◆可自动完成供纸折叠、纠偏、钉箱、糊箱、计数堆输出工作。

◆单钉、双钉可自由调整。

◆采用摆动式钉头，功耗小，速度更快，更加稳定，有效提高钉箱质量。

◆采用齐纸校正装置，进行二次补偿和修正箱片不到位现象，消除剪刀口，

◆钉箱更完.美。

◆打钉压力可根据纸板厚度自动调整。

◆自动送丝机可实现钉丝检测，钉丝断丝，钉丝用完检测。

Function and Characteristics:

◆The main features of this machine are full computer control, easy operation, stable quality, speed to achieve economic benefits, greatly saving manpower.

◆This nailing machine is an all-in-one pasting machine, which can paste boxes, nailing boxes, or paste first and then nail once. 3-5minutes to complete the order change setting, you can mass production (with order memory function).

◆Paste box nail box really achieve one-key conversion function (original creation in China).

◆Suitable for three, five, single board.A.B.C and AB flute board nail. Electric adjustment of line pressure.

◆With the pressure line function of each group (domestic initiative), the forming effect is better.

◆Nail distance range: The minimum nail distance is 40mm and the maximum nail distance range is 500mm.

◆Maximum nailing speed: 1500 nailing/min

◆Speed with three nails for example the top speed is 140 per minute

◆It can automatically complete the output work of paper folding, deviation correction, nailing box, paste box and counting heap.

◆Single and double nails can be adjusted freely.

◆The swinging type nailing head is adopted, which has the advantages of low power consumption, faster speed, more stability and effectively improving the quality of nailing box.

◆The paper alignment device is used for secondary compensation and correction of missing box pieces to eliminate the scissors mouth.

◆Nail boxes are more perfect.

◆The stitching pressure can be adjusted automatically according to the cardboard thickness.

◆Automatic wire feeding machine can realize wire detection, wire breakage, wire detection after use.

技术参数 Technological parameter:
