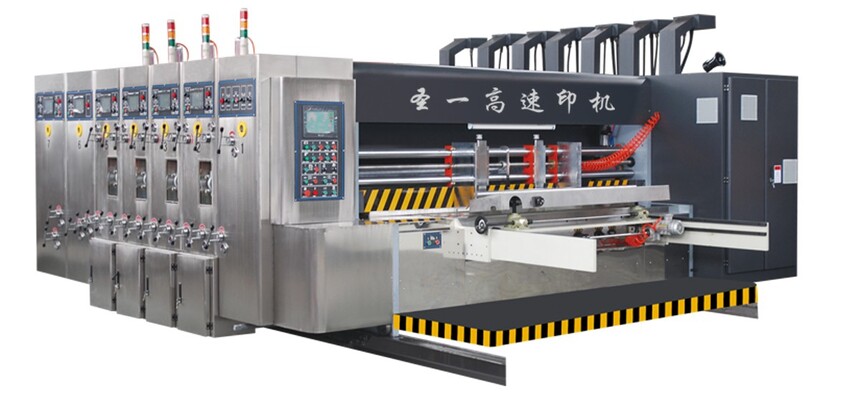

GYKM高速水墨印刷开槽模切机

GYKM高速水墨印刷开槽模切机

GYKM High Speed Printing Slotting Die Cutting machine

功能与特点：

◆ 整机电器及电脑软件均采用国际知名品牌，质量稳定可靠；采用人机界面，多台触摸屏控制，电脑订单管理,操作方便，换单更快(可预存999个订单)。

◆ 整机墙板及重要部件，均采用时效处理，回火消除金属内应力；均采用高精度加工中.心制作，数控磨床研磨加工。

◆ 整机轴、辊均采用钢材，研磨加工，高精度电脑动平衡校正，表面镀硬铬。

◆ 整机传动齿轮全部采用20CrMnTi合金钢，渗碳淬火处理，硬度HRC58～62；经磨齿加工，6级精度，保证长期使用套色精度高。

◆ 整机传动部位(轴、齿连接处)，均采用免键连接(胀紧套)，消除连接间隙，适合大扭矩长期高速运转。

◆ 整机传动轴承，重要传动部件均采用加强型调心轴承，维护简便，使用寿命更长。（采用三大名.牌：“哈瓦洛”）

◆ 整机润滑系统采用喷淋式自动润滑，配备自动平衡装置，保持各单元机油同一水平。

◆ 整机调整预置位功能，送纸、印刷、开槽、模切，自动归零，分合体记忆自动复位。

◆ 整机工作间隙调整，采用免扳手快速调整，执行调整快速、方便。

◆ 主机采用变频控制，启动、运转更平稳，更节能。

◆ 设有缺墨报警装置，实时监测供墨系统工作状态。

◆ 选装：陶瓷网纹辊；刮刀定墨系统；堆码机。

Function and characteristic:

◆The whole machine is adopted international famous brand appliances and computer software,the quality is  stable and reliable .Man-machine interface, Multi-set touch screen control ,computer order management, easy to operate.Replace the order faster（can be stored 999 orders in advance)

◆Whole wallboard and important components are adopted aging treatment, eliminate the metal internal stress;Adopt high precision machining centers, CNC grinding machine for grinding processing.

◆The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.

◆The engine drive gear is adopted 20CrMnTi alloy steel, carburizing,quenching treatment, hardness HRC58-62 and gear grinding processing precision level 6, and ensured the long-term use of tinted with high precision

◆Machine transmission parts (shaft, gear joint) are adopted free key connection (LOCK-ALX), the connection eliminate clearance. It is suitable for long-term high speed with high torque.

◆The machine drive bearing ,important driving parts adopt Heavy-duty self-aligning bearing ,simple maintenance,long service life.  (three big domestic famous brand:Hava los)

◆The engine lubrication system is adopted automatic spray type lubrication, Equipped with automatic balancing device, keep the oil in every units at the same level.

◆The machine is adopted adjustment preset functions, feeding , printing, slotting, die-cutting, automatic zero resetting ,Separate and combine memory automatic reset.

◆It adopts Working gap adjustment,  rapid adjustment without wrench, quick performance and convenient adjustment..

◆The main motor is adopted frequency conversion control.It makes start, running more steadily and saves more energy.

◆There is lack of ink alarm device and the real-time monitoring for the ink working condition system .

◆Optional: ceramic anilox roller, doctor blade and set ink system, stacking machine.
