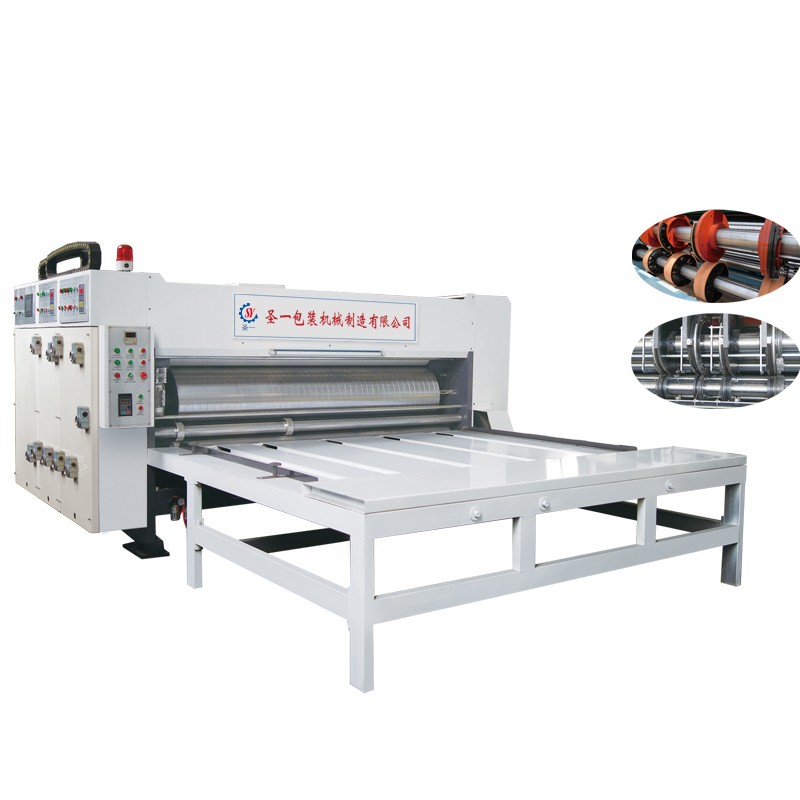

DYJK/2800/2/A型水墨印刷开槽机

DYJK/2800/2/A型水墨印刷开槽机

DYJK/2800/2/A Series Printing Slotting Machine

主要机构性能

◆ 该机可一次性完成一色至多色印刷，分切、压线、修边、开槽、切角、打孔等多道工序。主机采用变频控制。

◆ 机器采用模块式设计，各单元可按使用要求组合，单元之间气动锁定，电动分合。

◆ 印刷部使用气动供墨、气动抬版、自动匀墨。

◆ 开槽部采用同步调箱高，同步横移机构。

◆ 印刷及开槽相位匀采用微电脑调整，调整、方便、快捷。

◆ 各轴辊匀经过动平衡处理和校正，辊身表面镀硬铬处理。

◆ 齿轮采用合金钢高频淬火处理，十字滑块传动，无间隙调整，保证印刷套色的精度。

◆ 喷淋式自动润滑，油位平衡系统。

Characteristics：

◆This machine can complete the one color up more color printing, slitting, creasing, trimming, slotting, corner cutting, drilling, cutting, and other procedures.main engine control frequency conversion.

◆The machine uses a modular design, each unit can use a combination of requirements between units pneumatic locking, electric division.

◆Printing ink supply department pneumatic, pneumatic lift version, automatic inking.

◆Ministry slotted synchronous transfer box high , synchronous sliding mechanism.

◆Printing and slotting phase adjustment microcomputer uniform, precise adjustment, convenient and fast .

◆The rollers evenly through balancing processing and correction, hard chrome plated barrel handle.

◆Gear made of high quality steel induction hardened, Oldham transmission, without gaps adjustments to ensure the accuracy of the printing chromatic.

◆Spray automatic lubrication, oil level balancing system.
