AFG系列全自动粘箱机

AFG系列全自动粘箱机

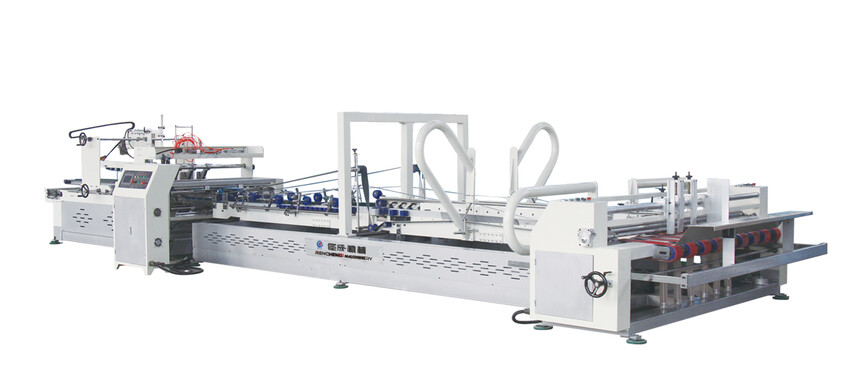

AFG Series Automatic Folder Gluer Machine

用途与特点：

◆ 自动糊箱机，此机型与人工糊箱比较可节省大量人工，节约一半胶水成本，且粘接正，不溢胶，做到投资小、故障少，既可减少对熟练工人的依赖，又可节省生产空间，实现效率、品质双丰收。彩印厂、纸制品厂等包装企业用此机型定能助您一臂之力。

◆ 该机主要由a、自动给纸；b、自动涂胶；c、自动折合；d、自动堆积计数出堆；e、自动捆扎（选配）；f、电器部组成。

◆ 采用进口输纸皮带下吸风送纸，堆码自动输入，保证给纸顺畅高速。独特的机械设计可快速简单的调整、侧导板、进纸刀与纸皮带分开，方便更换糊型尺寸。

◆ 自动涂胶部a、纸箱涂胶宽度为20-30mm，下涂胶方式；b、根据箱型胶箱可左右移动；C、糊量可控制大小，胶量稳定，容量大，保养简便；d、材料全部选用纯不锈钢，不生锈，耐用。

Function and Characteristics:

◆ Automatic paste box machine, this machine compared with manual paste box can save a lot of artificial, saving the cost of half glue, and glue is not glue, small investment, low malfunction and can reduce the dependence on skilled workers, but also save the production space, for efficiency, quality, double harvest. Color printing plant, paper products factory and other packaging enterprises use this model to help you.

◆ The machine is mainly composed of a and automatic paper; B. Automatic glue coating; C, automatic replacement;D, automatic accumulation counting out of the heap; E. Automatic binding (optional); F. Components of the electric appliance.

◆ The paper adopts imported paper belt to feed the paper, and automatically input the stacking code to ensure the smooth and high speed of the paper. The unique mechanical design can quickly and easily adjust, side guide board, paper knife and paper belt are separated, easy to replace the paste size.

◆ A. The width of the adhesive is 20-30mm and the gluing method is applied. B. According to the box plastic box, it can be moved around; C, the amount of paste can be controlled, the glue quantity is stable, the capacity is large, the maintenance is simple; D. All materials are made of pure stainless steel, never rust and durable.
