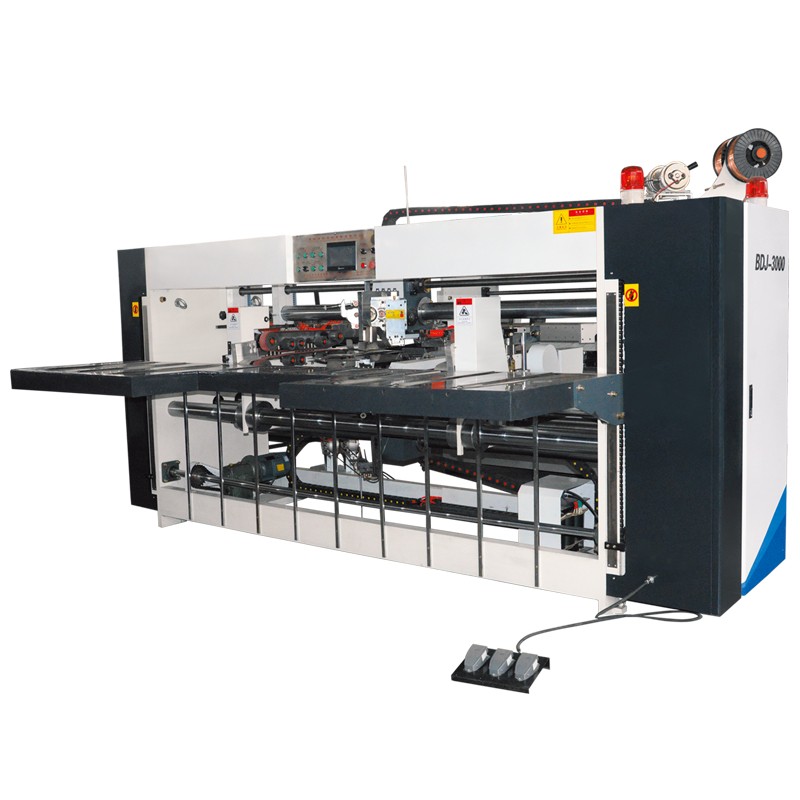

四伺服双片钉箱机

四伺服双片钉箱机

Four servo double piece nail box machine

功能与特点

◆ 日本三菱原装进口四伺服驱动，精度准确，机械传动部分减少，可有效减少机械的故障率。

◆ 整个控制系统采用欧姆龙PLC控制系统。

◆ 控制箱内接触器全部采用日本三菱品牌。

◆ 继电器、断路器采用法国施耐德品牌,光电和接近开关采用日本欧姆龙品牌。

◆ 底模，刀片采用日本钨钢制作（耐磨）。

◆ 整组钉头全部采用特殊钢制作，电脑数控加工。

◆ 变换纸箱尺寸和调节纸箱钉距只需一分钟就可完成,大大节省时间操作方便。

◆ 前后双向挡板配置，可订无盖纸箱及小纸板箱、彩箱。

◆ 后段有自动计数功能，做好的成品张数可按设定数量(1-99)分叠送至输送机械末端，方便打包捆扎。

◆ 前端送纸部自动计数,送纸台设有光电感应装置,送纸时自动上升。

◆ 一台两用,可钉单片接钉纸箱,双片接钉纸箱,不规则纸箱。

◆ 尺寸采用全电动式控制，变换尺寸只需2-3分钟。

◆ 可钉加强钉，单钉，双排钉，一次完成。

◆ 送纸部自动计数，成品送出捆扎。

◆      给纸高度：590mm。

◆ 适用于中小型纸箱、装钉快速而省力。

◆ 调整钉距，使用电脑设定自动调钉距。

◆ 本机采用电脑荧幕显示故障说明。

◆ 自动送丝系统，无丝报警，20KG大盘扁丝，节约时间。

◆ 适用瓦楞纸板三层、五层、七层（七层时需特殊说明）。

◆ 本机采用四个伺服电机(即两个机头电机和两个控制钉距电机)。

◆ 整机电器隔离变压器保护功能；

◆ 装订方式:双直钉或单直钉/加强钉。

Function and Characteristics:

◆ The original imported four servo drive from Mitsubishi, Japan, has accurate accuracy and reduced mechanical transmission part, which can effectively reduce the failure rate of machinery.

◆ The whole control system adopts OMRON PLC control system.All contactors in the control box are made of Mitsubishi brand.

◆ The relay and circuit breaker are made of Schneider brand in France, and the photoelectric and proximity switches are made of OMRON brand in Japan.

◆ Bottom mold and blade are made of Japanese tungsten steel (wear-resistant).

◆ The whole set of nail heads are made of special steel and processed by computer numerical control.

◆ It only takes one minute to change the size of the carton and adjust the nail distance of the carton, which greatly saves time and convenient operation.

◆ Front and back two-way baffle configuration, can order no cover cartons, small cardboard boxes, color boxes.

◆ The rear section has the function of automatic counting. The finished products can be stacked to the end of the conveying machine according to the set quantity (1-99),

        which is convenient for packing and binding.

◆ The front end paper feeding section counts automatically, and the paper feeding table is equipped with photoelectric induction device, which rises automatically during paper feeding.

◆ Paper feeding height: 590mm.

◆ A dual-purpose machine, which can be used to nail single piece of paper box, double piece of paper box and irregular paper box.

◆ The size is controlled by full electric control, and it only takes 2-3 minutes to change the size.

◆ It can be nailed with reinforcing nails, single nails, double rows of nails, once completed.

◆ The paper feeding part counts automatically, and the finished products are sent out and bound.

◆ Suitable for small and medium-sized cartons, fast and labor-saving.

◆ Adjust the nail distance, use the computer to set the automatic nail distance;

◆ This machine uses computer screen to display fault description.

◆ Automatic wire feeding system, no wire alarm, 20kg large flat wire, saving time.

◆ Applicable to three, five and seven layers of corrugated board (special instructions are required for seven layers).

◆ The machine adopts four servo motors (i.e. two head motors and two control nail pitch motors).

◆ Protection function of electrical isolation transformer of the whole machine;

◆ Binding method: double straight nails or single straight nails / reinforcing nails
