RC-1200G 全自动预折勾底糊盒机

RC-1200G 全自动预折勾底糊盒机

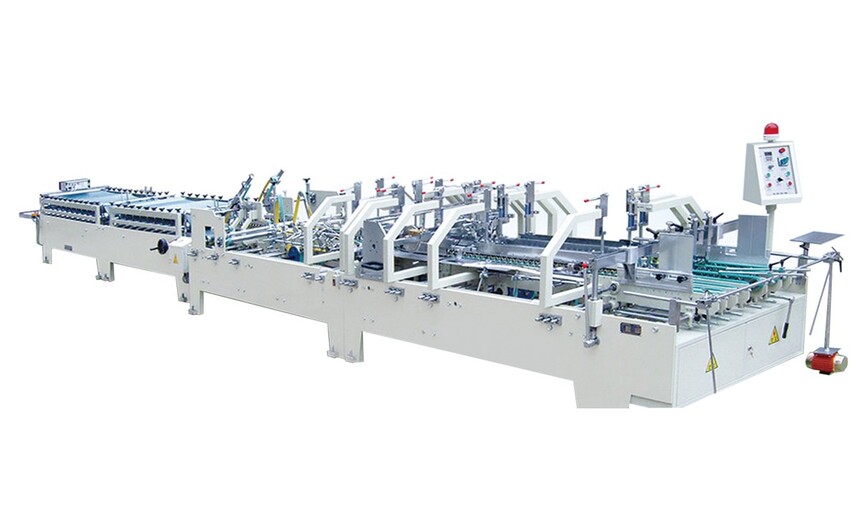

RC-1200G Automatic pre-fold bottom locked gluing machine

技术指标：

◆蕞高线速度：280/min

◆使用纸质：220~600g/m2纸板，E浪瓦楞纸

◆糊盒基本形式：一侧边贴，两侧边贴，底贴

◆拆反方式：一三折线90°，二四折线180°

◆给纸方式：自动连续给纸

◆使用粘合剂：溶质型

◆所需电力：6KW,AC380V

◆外形尺寸：10500×1300×1300mm

Technical indicators：

◆Max line velocity speed:280 m/min

◆Apply paper type:220-600g/m2 E flute corrugated paper

◆The basic type of the gluer:One side stick, two side stick, bottom stick

◆Fold way:1st fold and 3rd fold can be folded as 90°, 2nd fold and 4th fold can be formed as 180°.

◆Feeding way:automatic continuous feeding

◆The type of adhesive:solvend

◆The need of electricity:6kw ,AC380V

◆Dimension:10500×1300×1300mm
